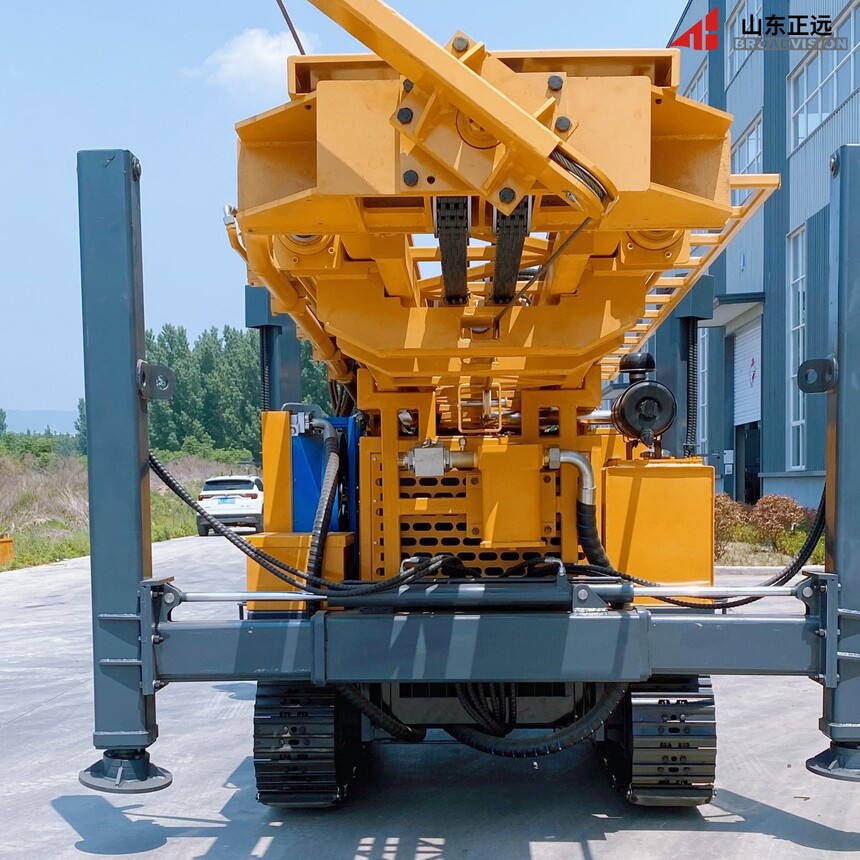

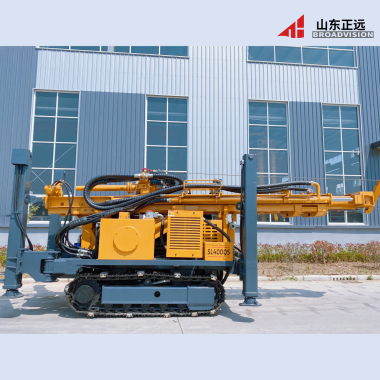

SL400QS |
最大鉆孔深度 Max drilling depth | 400m | 最大回轉扭矩 Max rotary torque | 8000/4000Nm |
鉆孔直徑 Drilling diameter | 105-325mm | 最大回轉轉速 Max rotary speed | 75/150r/min |
推薦工作風壓 Air pressure | 1.2-3.5Mpa | 小副卷揚提升力 Small auxiliary winch lifting force | 1.5T |
推薦耗氣量 Air consumption | 16-55m³/min | 支腿行程 Jacks stroke | 1.6m |
鉆桿長度 Drill pipe length | 6m | 進尺效率 Drilling efficiency | 10-35 |
推薦鉆桿直徑 Drill pipe diameter | 89/102mm | 行走速度 Moving speed | 3Km/h |
軸壓力 Axial pressure | 4T | 爬坡能力 Uphill angle | 21 ° |
提升力 Lifting force | 22T | 機重 Weight of the rig | 8.6T |
快升速度 Fast lifting speed | 29m/min | 外形尺寸 Dimension | 6.25*1.7*2.39m |
快進速度 Fast feeding speed | 56m/min | 發動機 Engine | 濰柴103kw Weichai 103KW |
